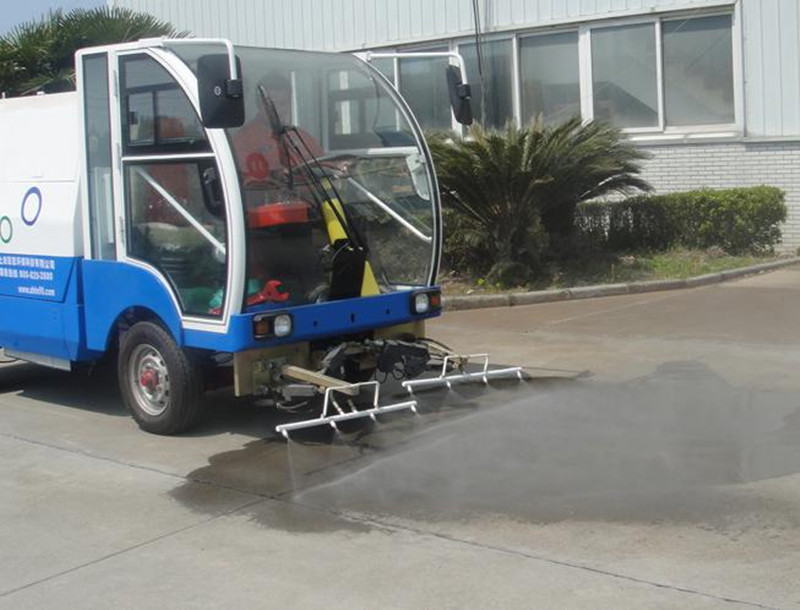

TY25DQQX hybrid high pressure cleaning machine
TY25DQQX hybrid high pressure cleaning machine
TY25DQQX hybrid high pressure cleaning machine is the Shanghai Tian Yi environmental protection technology Co., Ltd. according to market demand, innovation and development of energy saving, environmental protection of the steam electric hybrid cleaning machine. The advantages of safety, environmental protection, low noise and low emission. The cleaning power is strong, can work all day.
Sweep width (mm): 2000
Cleaning efficiency (m2/h): 16000
Middle brush width (mm): 840
Single brush width (mm): 80
Trash bin volume (L): 240
Dust removal water tank volume (L): 1100
Size L * W * H (mm): 4250 x 1560 x 1950
The quality of service (kg): 1480
Maximum total mass (kg): 2900
Wheelbase (mm): 2200
Track (front / rear) (mm): 1260/1260
Minimum turning radius (mm): 4600
Minimum ground clearance (mm): 180
Climbing performance (slope): <20%
Cleaning width (mm): 2000
Water spray frame deflection angle (about each): 30
Volume of water tank (L): 1100
Gasoline engine power (Hp): 8
Water flow rate (L/min): 15
Maximum pressure (MPa): 20
Walking motor (kw): 4
Battery voltage (V): 48
Battery capacity (Ah): 210
One time sufficient electric continuous working time (H): 8
Charging time (H): 4-6
Top speed (km/h): 20
The noise outside the highest speed machine (dB (A)): = 85
Number of drivers in the cab (person): 2
QQ online
National Service Hotline:
  • Details
  • Technology
  • Features
  • Parameters

TY25DQQX hybrid high pressure cleaning machine is the Shanghai Tian Yi environmental protection technology Co., Ltd. according to market demand, innovation and development of energy saving, environmental protection of the steam electric hybrid cleaning machine. The advantages of safety, environmental protection, low noise and low emission. The cleaning power is strong, can work all day.


The washing machine with high pressure fan, 900 liters of water per hour can be sprayed, cleaning width 2000mm, can adjust the number of nozzle and water pressure, in order to adapt to different conditions. The high-pressure water pump filter, high pressure nozzle wear resistant stainless steel produced steady pressure to City Road Old stains clean, showing the pavement color, improve the level of city road maintenance and sanitation.


The road cleaning work is suitable for small and Middle Road, square, park, station, airport and so on.


Product features;

1, TY25DQQX cleaning machine with steam power source as the power source, with safety, environmental protection, low noise, low emission advantages;

2, the design of portable, safe, stable and reliable performance;

3, less water consumption, energy saving, environmental protection;

4, the appearance of the body shape beautiful, generous;

5, the cab using safety glass, vision, clear, clear, smooth running, easy to operate;

6, in the parking state can be quickly connected to the high-pressure spray gun, 10M long high pressure hose can let you do whatever you want to clean.

7, all the pressure to which four or two nozzles, thoroughly clean the dirt, dead serious parts.



TY25DQQX hybrid high pressure cleaning machine is the Shanghai Tian Yi environmental protection technology Co., Ltd. according to market demand, innovation and development of energy saving, environmental protection of the steam electric hybrid cleaning machine. The advantages of safety, environmental protection, low noise and low emission. The cleaning power is strong, can work all day.


The washing machine with high pressure fan, 900 liters of water per hour can be sprayed, cleaning width 2000mm, can adjust the number of nozzle and water pressure, in order to adapt to different conditions. The high-pressure water pump filter, high pressure nozzle wear resistant stainless steel produced steady pressure to City Road Old stains clean, showing the pavement color, improve the level of city road maintenance and sanitation.


The road cleaning work is suitable for small and Middle Road, square, park, station, airport and so on.



Product features;

1, TY25DQQX cleaning machine with steam power source as the power source, with safety, environmental protection, low noise, low emission advantages;

2, the design of portable, safe, stable and reliable performance;

3, less water consumption, energy saving, environmental protection;

4, the appearance of the body shape beautiful, generous;

5, the cab using safety glass, vision, clear, clear, smooth running, easy to operate;

6, in the parking state can be quickly connected to the high-pressure spray gun, 10M long high pressure hose can let you do whatever you want to clean.

7, all the pressure to which four or two nozzles, thoroughly clean the dirt, dead serious parts.
