TY25DDQX pure electric cleaning machine
TY25DDQX pure electric cleaning machine

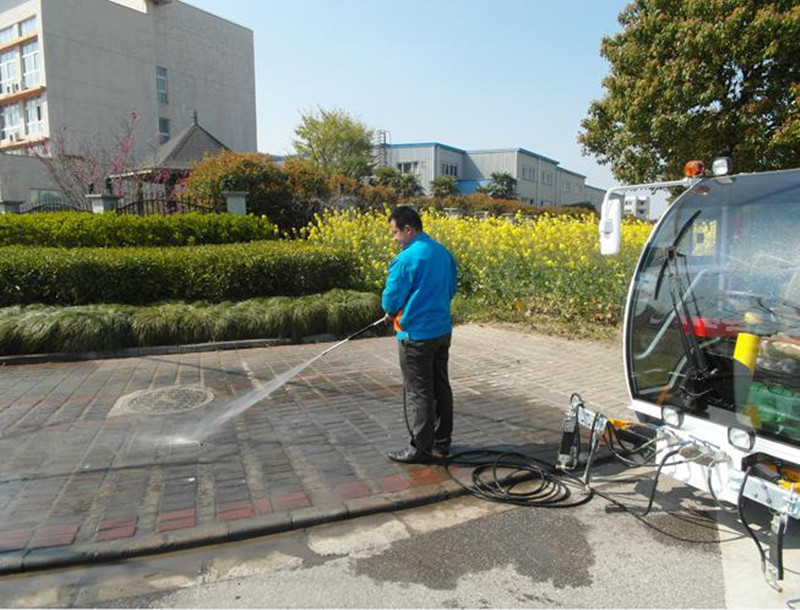

TY25DDQX pure electric cleaning machine is a battery powered energy-saving environmental protection cleaning machine (with mobile gun), it has the advantages of small size, unique appearance, the characteristics of good, simple operation, flexible operation etc
Sweep width (mm): 2000
Cleaning efficiency (m2/h): 16000
Middle brush width (mm): 840
Single brush width (mm): 80
Trash bin volume (L): 240
Dust removal water tank volume (L): 11
Maximum size L * W * H * (mm) 3370 x 1475 x 2030
Transport minimum size L * W * H * (mm) 3370 * 1277 * 2030
The quality of service (kg) 1570
Maximum total mass (kg) 2750
Wheelbase (mm) 1665
Track (front / rear) (mm) 1052/1100
Minimum turning radius (mm) 4500
Minimum ground clearance (mm) 200
Climbing performance (climbing slope) <20%
Pure electric water pump flow (L/Min) 15
Pure electric water pump pressure (MPa) 8
Walking motor (kw) 4
Battery voltage (V) 48
Battery capacity (Ah) 360
Working speed (km/h) 1 - 3
One time sufficient electric continuous working time (H) 8
Charging time (H) 84-6
Top speed (km/h) 18
The noise outside the highest speed machine (dB (A)) = 55
Tire model (NHS) 23 x 8.50--12
QQ online
National Service Hotline:
  • Details
  • Technology
  • Features
  • Parameters

TY25DDQX pure electric cleaning machine is Shanghai Tianyi environmental technology limited company developed a barrel after all Aluminum Alloy cab power battery cleaning machine, the cleaning machine of all power, all from high green power battery on its own assembly. Compared with the same specifications of the fuel engine, the annual cost savings of more than 50%. Outstanding environmental performance, low noise, harmful gas zero emissions, equipped with sprinkler dust device, to avoid dust, to eliminate the two pollution. Patents in barrels for garbage recycling, more energy saving, more energy saving, garbage dumping more flexible, more convenient.


TY25DDQX pure electric washing machine transition speed, small volume, good passing ability, flexible operation, especially suitable for cleaning small roads and non motorized vehicles, large squares, industrial parks, airports, scenic spots, pedestrian street and other places.


Advantage highlights:

The use of renewable energy saving, power driven, power battery specially formulated only charging 4-5 hours, can use 8-12 hours;

The sweeping system - strong, can be "leaves, cigarette butts, beverage bottles, stones and other garbage clean;

The cab adopts safety glass, clear vision, security work;

The stable and reliable performance, easy maintenance and maintenance;

The spacious cab, make the operation more comfortable;

Instrument and operating system - humane, easy control of the machine;

The upgrading of technology, better than the Expo for cleaning machine.






TY25DDQX pure electric washing machine transition speed, small volume, good passing ability, flexible operation, especially suitable for cleaning small roads and non motorized vehicles, large squares, industrial parks, airports, scenic spots, pedestrian street and other places.

Advantage highlights:

The use of renewable energy saving, power driven, power battery specially formulated only charging 4-5 hours, can use 8-12 hours;

The sweeping system - strong, can be "leaves, cigarette butts, beverage bottles, stones and other garbage clean;

The cab adopts safety glass, clear vision, security work;

The stable and reliable performance, easy maintenance and maintenance;

The spacious cab, make the operation more comfortable;

Instrument and operating system - humane, easy control of the machine;

The upgrading of technology, better than the Expo for cleaning machine.
