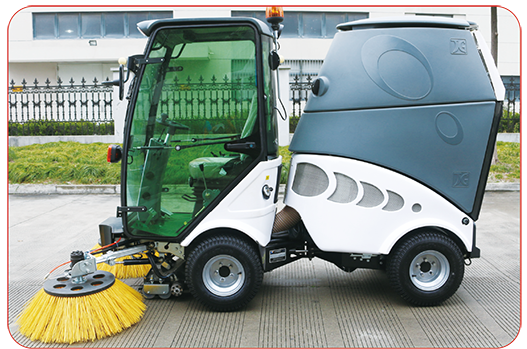

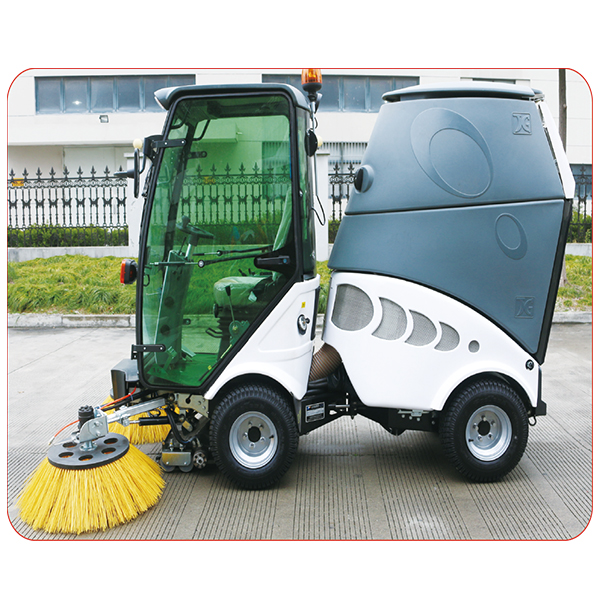

Tian Yi brand TY16DSQS-2 diesel cleaning machine is a special chassis structure and small suction sweeper. The cleaning machine technology is the latest technology in Europe, in the domestic production. TY16DSQS-2 diesel engine from a Japanese Yanmar diesel engine output power of the whole machine, all the operations are completed by the hydraulic drive.

The two sweep brush is arranged on both sides of the front of the cab, and the suction port is arranged in the middle of the driving room, and the cleaning operation field of vision is good and convenient. The cleaning operation of the cleaning machine does not produce two pollution, the cleaning machine is installed with a national patent dust filtering device, to eliminate the two dust.

TY16DSQS-2 diesel cleaning machine has obtained 9 National patents:

1, a new type of multi functional design switching device, patent number: ZL201220195007.0;

2, a small multi functional maintenance machine device appearance shape patents, patent number: ZL201230424609.3;

3, a garbage cleaning machine, patent number: ZL201420140655.4;

4, a new type of garbage cleaning machine, patent number: ZL201420141841.X;

5. A garbage cleaning machine with detachable garbage box detection device, patent number: ZL201420140673.2;

6. A kind of garbage cleaning machine with double suction cleaning mechanism, patent number: 201420141835.4;

7, a front brush body, patent number: ZL201420136074.3;

8, a brush assembly quickly change the body, patent number: ZL201420136052.7;

9, a suction port lifting body, patent number: ZL201420136050.8.

Main features of TY16DSQS-2 diesel engine cleaning machine:

1, design a small turning radius, low fuel consumption, low emission;

2, the design of the operating power all by the hydraulic transmission, the engine through the elastic coupling direct drive series pump combination;

3, the design of the vehicle four wheel drive, continuously variable speed, low speed and large torque wheel side motor, stable and safe running;

4, the design of the steering system using hydraulic articulated steering, steering flexibility;

5, the design of the overall structure of all the use of 16Mn steel stamping, welding and into;

6, the design of the driver's room using the framework of the structure, open field of vision, air-conditioning, the environment is comfortable and comfortable;

7, the design of a garbage tank and water tank using high density PPE materials and garbage can be removed as a whole, the installation of a special design of the dust removal device to eliminate the dust of the outlet, to prevent the formation of PM2.5;

8, design of cleaning system can be freely disassembled, in addition to the machine design of mowing, snow, snow, snow and other ancillary equipment, for customers to choose, with one machine with multiple functions;

9, the design of the cleaning system is composed of 2 sweeps, can be arbitrarily adjust the sweeping direction, but also according to the amount of garbage freely adjust sweep brush speed, in order to achieve a better cleaning effect.

10, the design of electronic control system centralized control, data instrument display, equipped with automatic alarm device.

11, design a brake system used in conjunction with German imports of mechanical brake and brake hydrostatic drive automatic braking efficiency, ensure traffic safety and parking brake.

12, the design is equipped with a CD player, so that the operator to carry out cleaning operations.

13, the design has a unique cleaning and suction system, the structure is more reasonable, more efficient.

The model is suitable for city street, middle and small road, non motorized vehicle lane, Park Plaza and other occasions.

Engine: Japan's Yanmar YANGMA

Walking hydraulic pump: Italy imports

Sweep hydraulic motors: Denmark

Hydraulic valve: United States imports

Brake: Germany imports

Hydraulic hose: Italy inlet hose

Suction bellows: Italy imported PU pipe

Seal: Japan imports

Hydraulic system filter: Italy imports

Gear pumps and motors: Italy imports

Central distribution box: Germany imports

Shanghai Tian Yi developed TY16DSQS-2 diesel cleaning machine is a design according to the ergonomics of outdoor multifunctional special equipment, can complete the outdoor work uninterrupted throughout the year, can be used for cleaning and dust in spring and autumn, summer can be used for weeding, pruning, can be used to snow, salt in winter, a rapid plug-in equipment before different devices have different functions, for the domestic exclusive, filling the domestic blank, completely replace imported products. The cleaning machine is equipped with a unique hand-held suction hose, which can be used for a more complex green belt, turning corners and the machine can not be carried out before the machine can be used to carry out cleaning operations.

Product hydraulic systems are from the most advanced foreign technology, the use of full hydraulic multi control steering, steering flexibility, and wide adaptation. The engine and the main parts such as all kinds of pumps, motors, electrical parts are imported accessories, product quality, reliability, superior performance, technology leadership.

The product is compact and flexible, small turning radius, cleaning effect, high cleaning efficiency, simple operation and convenient maintenance.

Main features of TY16DSQS-2 diesel engine cleaning machine:

1, design a small turning radius, low fuel consumption, low emission;

2, the design of the operating power all by the hydraulic transmission, the engine through the elastic coupling direct drive series pump combination;

3, the design of the vehicle four wheel drive, continuously variable speed, low speed and large torque wheel side motor, stable and safe running;

4, the design of the steering system using hydraulic articulated steering, steering flexibility;

5, the design of the overall structure of all the use of 16Mn steel stamping, welding and into;

6, the design of the driver's room using the framework of the structure, open field of vision, air-conditioning, the environment is comfortable and comfortable;

7, the design of a garbage tank and water tank using high density PPE materials and garbage can be removed as a whole, the installation of a special design of the dust removal device to eliminate the dust of the outlet, to prevent the formation of PM2.5;

8, design of cleaning system can be freely disassembled, in addition to the machine design of mowing, snow, snow, snow and other ancillary equipment, for customers to choose, with one machine with multiple functions;

9, the design of the cleaning system is composed of 2 sweeps, can be arbitrarily adjust the sweeping direction, but also according to the amount of garbage freely adjust sweep brush speed, in order to achieve a better cleaning effect.

10, the design of electronic control system centralized control, data instrument display, equipped with automatic alarm device.

11, design a brake system used in conjunction with German imports of mechanical brake and brake hydrostatic drive automatic braking efficiency, ensure traffic safety and parking brake.

12, the design is equipped with a CD player, so that the operator to carry out cleaning operations.

13, the design has a unique cleaning and suction system, the structure is more reasonable, more efficient.
