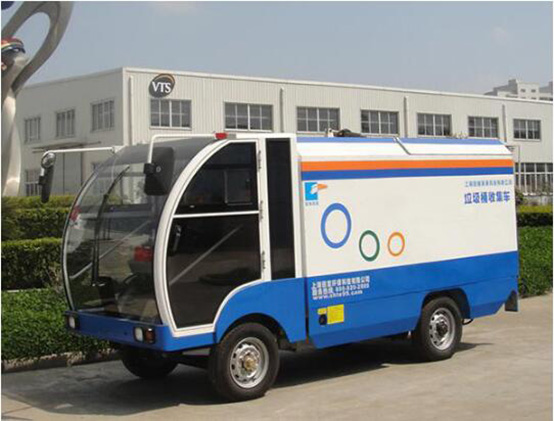

TY26DD8T electric closed type garbage collecting vehicle
TY26DD8T electric closed type garbage collecting vehicle
TY26DD8T electric closed type garbage collecting vehicle
Size: L * W * H * (mm) 3980 * 1580 * 1970
The quality of service (kg): 1200
Maximum total mass (kg): 2560
Wheelbase (mm): 2200
Track (front / rear) (mm): 1260/1260
Minimum turning radius (mm): 4600
Minimum ground clearance (mm): 180
Climbing performance: <20%
Trash bin volume (L): 240L * 8
Walking motor (kw): 4
Battery voltage (V): 48
Battery capacity (Ah): 210
One time sufficient electric continuous working time (H): 4-6
Charging time (H): 6-8
Top speed (km/h): 17
Noise (dB (A)): = 55
Number of drivers in the cab (person): 2
Tire model (LT): 165R113
QQ online
National Service Hotline:
  • Details
  • Technology
  • Features
  • Parameters

Shanghai Tian Yi environmental protection technology Co., Ltd. production of pure electric closed garbage collection vehicles, to adapt to the city's garbage box short distance transport. The vehicle is equipped with a high efficiency and environmental protection power battery, low noise, zero emission of harmful gases, environmental protection and energy saving effect. To change the barrel barrel, short barreled garbage on the barge, optional loading 240L trash 6 or 8 two specifications.

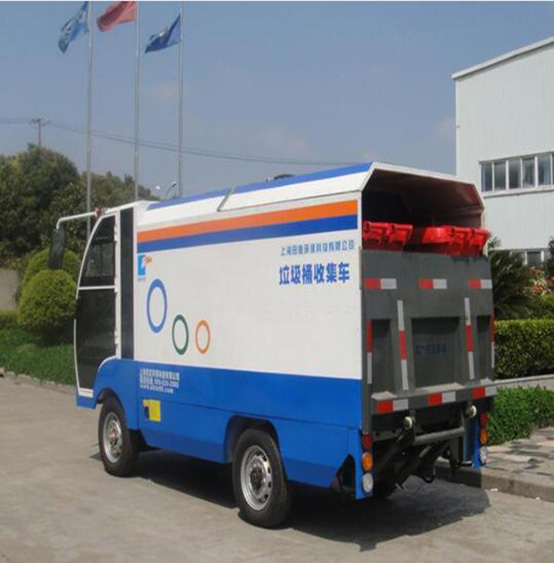

The garbage can load the hydraulic lifting tail plate, reduce the labor intensity of the sanitation workers, and improve the work efficiency. Closed box design, the trash can be hidden, and more beautiful appearance. Is a large number of environmental sanitation, property and other sectors of the preferred products.


Apply to the city streets, scenic spots, venues, squares, residential, bazaar and other places to understand the transfer of work. At the same time can also be used for the station, airport and other occasions such as the transfer of goods, etc..

Shanghai Tian Yi environmental protection technology Co., Ltd. production of pure electric closed garbage collection vehicles, to adapt to the city's garbage box short distance transport. The vehicle is equipped with a high efficiency and environmental protection power battery, low noise, zero emission of harmful gases, environmental protection and energy saving effect. To change the barrel barrel, short barreled garbage on the barge, optional loading 240L trash 6 or 8 two specifications.


The garbage can load the hydraulic lifting tail plate, reduce the labor intensity of the sanitation workers, and improve the work efficiency. Closed box design, the trash can be hidden, and more beautiful appearance. Is a large number of environmental sanitation, property and other sectors of the preferred products.


Apply to the city streets, scenic spots, venues, squares, residential, bazaar and other places to understand the transfer of work. At the same time can also be used for the station, airport and other occasions such as the transfer of goods, etc..


Advantage highlights:

The use of renewable energy saving, power driven, power battery specially formulated only charging 4-5 hours, can use 8-12 hours;

The sweeping system - strong, can be "leaves, cigarette butts, beverage bottles, stones and other garbage clean;

The cab adopts safety glass, clear vision, security work;

The stable and reliable performance, easy maintenance and maintenance;

The spacious cab, make the operation more comfortable;

Instrument and operating system - humane, easy control of the machine;

The upgrading of technology, better than the Expo for cleaning machine.
